RARITAN® - Ricambi fabbricatori di ghiaccio ICER-ETTE™
Codice: ICER-ETTE™
| Scarica documento |
RARITAN® - Manuale ICER-ETTE™ Mod.84/85/87 Ita. .pdf (667.24 KB)
|
MANUALI |
| Scarica documento |
RARITAN® - Manuale ICER-ETTE™ Mod.87 AUTOMATIC ICE CUBE MAKER Eng. .pdf (2.12 MB)
|
MANUALI |
 |
|||||||||
|
|
|||||||||
|

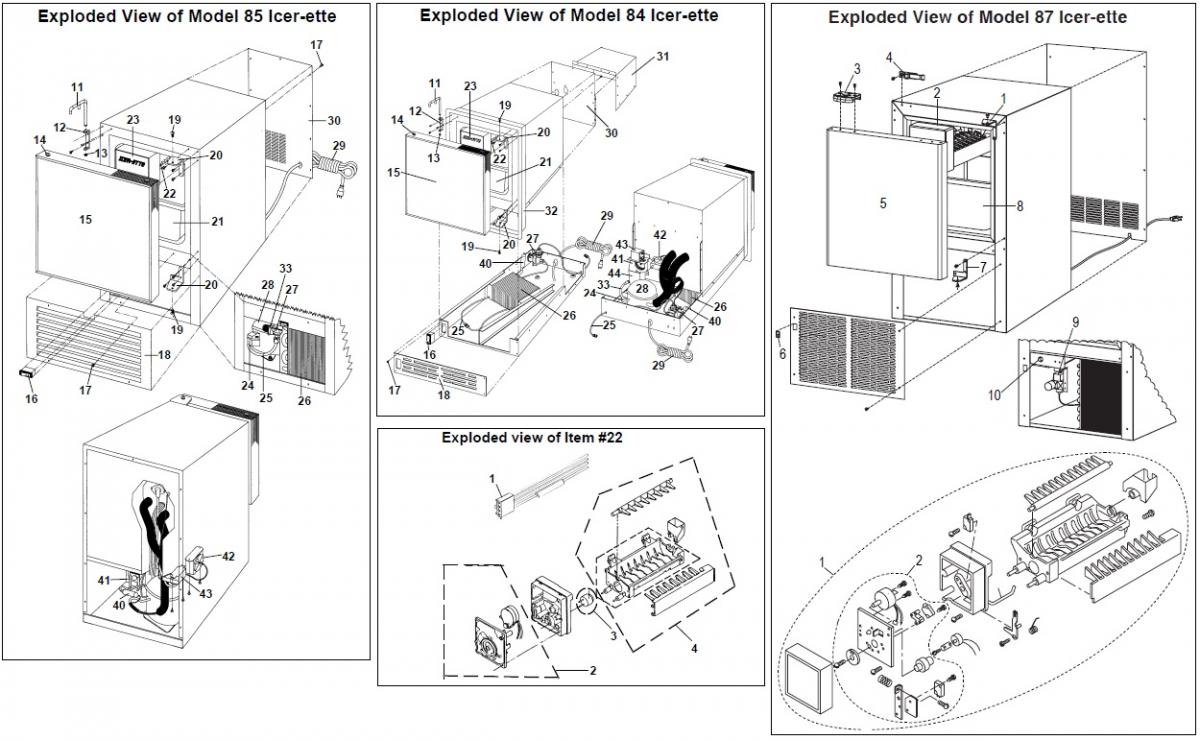

Part.
|
Descrizione | Mod.84-220 | Mod.85-220 | Mod.87-220 | |||||
| 1 | Wiring Harness | I44220 | I44220 | -- | |||||
| 2 | Module Assembly (628366) | I34M220 | I34M220 | -- | |||||
| 3 | Thermostat | I34T | I34T | -- | |||||
| 4 | Ice Mold Assembly | I34MH220 | I34MH220 | -- | |||||
| 11 | Door Lock Link | I19B | I19B | -- | |||||
| 12 | Door Retainer Bracket | I17 | I17 | -- | |||||
| 13 | Link Retaining Ring | I306 | I306 | -- | |||||
| 14 | Door Bushing | I21 | I21 | -- | |||||
| 15 | S/S Door Assy. | I7W | I7W | 87205 | |||||
| 16 | On-Off Switch | I37 | I37 | 87206 | |||||
| 17 | Mounting Screws | F088 | F088 | -- | |||||
| 18 | Grille | I9S | I9 | -- | |||||
| 19 | Pivot Screw | I124 | I124 | -- | |||||
| 20 | Hinge Set (Top & Bottom) | I12 | I12 | 87201W | |||||
| 21 | Ice Bucket | I90 | I90 | 87209 | |||||
| 22 | Ice Maker Assy. | I34W220 | I34W220 | 872022 | |||||
| 23 | Ice Maker Assy. Front Cover | I34A | I34A | -- | |||||
| 24 | Relay w/ overload protector | I1806-2 | I1806-2 | -- | |||||
| 25 | Water line Tubing | I93W | I93W | -- | |||||
| 26 | Condenser | I24 | I24 | -- | |||||
| 27 | Solenoid Valve | I34B220 | I34B220 | -- | |||||
| 28 | Compressor (Includes #33 and #40) | II800A-2W | II800A-2W | -- | |||||
| 29 | Power Cord | I41220 | I41220 | -- | |||||
| 30 | Rear Panel | I11S | I11 | -- | |||||
| 31 | Enclosure Cover | I20A | N/A | ||||||
| 32 |
Flange
Flange with Hole
|
I99S
--
|
I99 I99H |
-- | |||||
| 33 | Service Valve w/Tube | I101 | I101 | -- | |||||
| 40 | Drier | I30A01 | I30A01 | 872142 | |||||
| 41 | Fan Motor | I28220 | I28220 | -- | |||||
| 42 | Cold Control | I33 | I33 | 87215 | |||||
| 43 | Ejector Relay | I52220 | I52220 | -- | |||||
| 44 | Air Duct | I29 | N/A | -- | |||||
| 45 | Handle Latch Assy | -- | -- | 87203W | |||||
| 46 | Water Valve | -- | -- | 872112 | |||||
| 47 | Motor assy. faceplate | -- | -- | 872022M | |||||
| - | Compressor with dryer | -- | -- | 872132 | |||||
