SeaLand® Dometic® - Vacuum Generator 2 VG12 & VG24
Codice: SeaLand
| Scarica documento |
SEALAND® -Esploso Vacuum Generatore 2 12/24VDC. pdf (426,14)
|
MANUALI |
Vacuum Generator 2 VG12 & VG24
|
| MODELLO FUORI PRODUZIONE - solo ricambi |
|
958041599 VG12
958041602 /04 / 05 VG24 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||
|
ITEM
|
PART N°
|
DESCRIPTION
|
ITEM
|
PART N°
|
DESCRIPTION
|
|
1
|
385311323
|
PUMP COVER KIT
|
13
|
385310540
|
VACUUM SWITCH ASSEMBLY (includes 11 & 12)
|
|

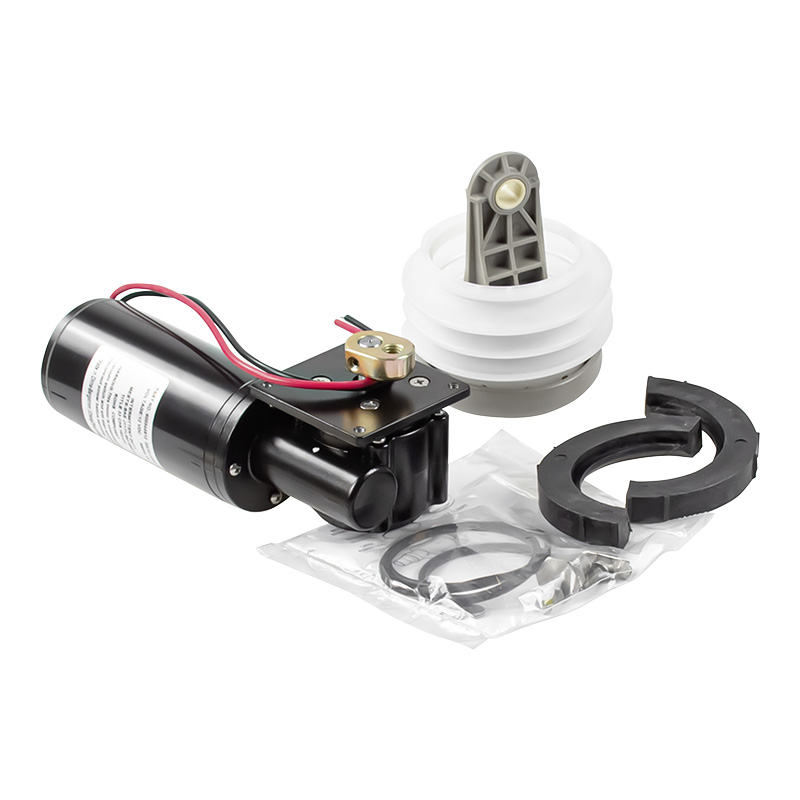

2
|
385311423
|
12 V MOTOR UPGRADE KIT (includes 2,4,5,6,7&22)
|
14
|
385310076
|
DUCK BILL VALVES (2 PACK)
|
|
385311424
|
24 V MOTOR UPGRADE KIT includes 2,4,5,6,7&22)
|
15
|
388640366
|
1 1/2" CLOSE NIPPLE
|
|
|

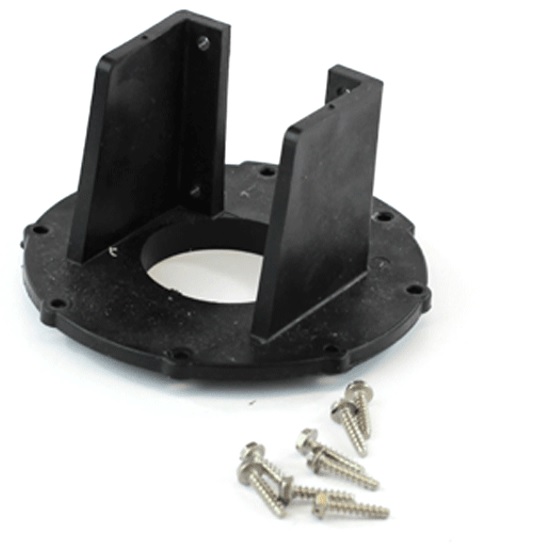

3
|
385311324
|
PUMP TOP CLOSURE
|
16
|
385311163
|
HARDWARE PUMP TO TANK
|
|
4
|
385310151
|
"O" RING KIT
|
17
|
385310635
|
INLET ELBOW KIT (includes item 18)
|
|
5
|
385310242
|
BUSHING
|
18
|
385311838
|
1 1/2" SEALING GROMMET
|
|
6
|
385310644
|
ECCENTRIC KIT
|
19
|
600347800
|
VALVE NIPPLE
|
|
7
|
385311226
|
BELLOWS CLAMPS
|
20
|
600347801
|
VALVE ADAPTER
|
|
8
|
600342783
|
3 3/4" HOSE CLAMP
|
21
|
385311844
|
PUMP BODY
|
|
9
|
600342779
|
O'RING, 3"ID X 3 1/4" OD
|
22
|
385230980
|
BELLOWS ASSEMBLY (includes item #5)
|
|
10
|
385310539
|
DIPTUBE ASSEMBLY (includes 9)
|
23
|
385311215
|
VACUUM SWITCH COVER
|
|
11
|
600342782
|
2 1/2" HOSE CLAMP
|
24
|
385311780
|
MOUNTING SPINDLE
|
|
12
|
600342778
|
O'RING 2"ID X 2 1/4"OD
|
N/S
|
385310774
|
VG 2 PUMP ASSEMBLY COMPLETE 12 VDC
(INCLUDES 1-7,14,15,19-22
|
|
|
|
|
385310775
|
VG 2 PUMP ASSEMBLY COMPLETE 24 VDC (INCLUDES 1-7,14,15
|
|
