SIDE-POWER® by Sleipner Motor - SE100/185S-12V Elica di manovra a Tunnel
Codice: SE100/185T-12V
SE100/185S Elica di manovra a Tunnel 12V 100kg.di spinta |
|
Item code: SE100/185S-12V EAN: 7070969002080
|
|

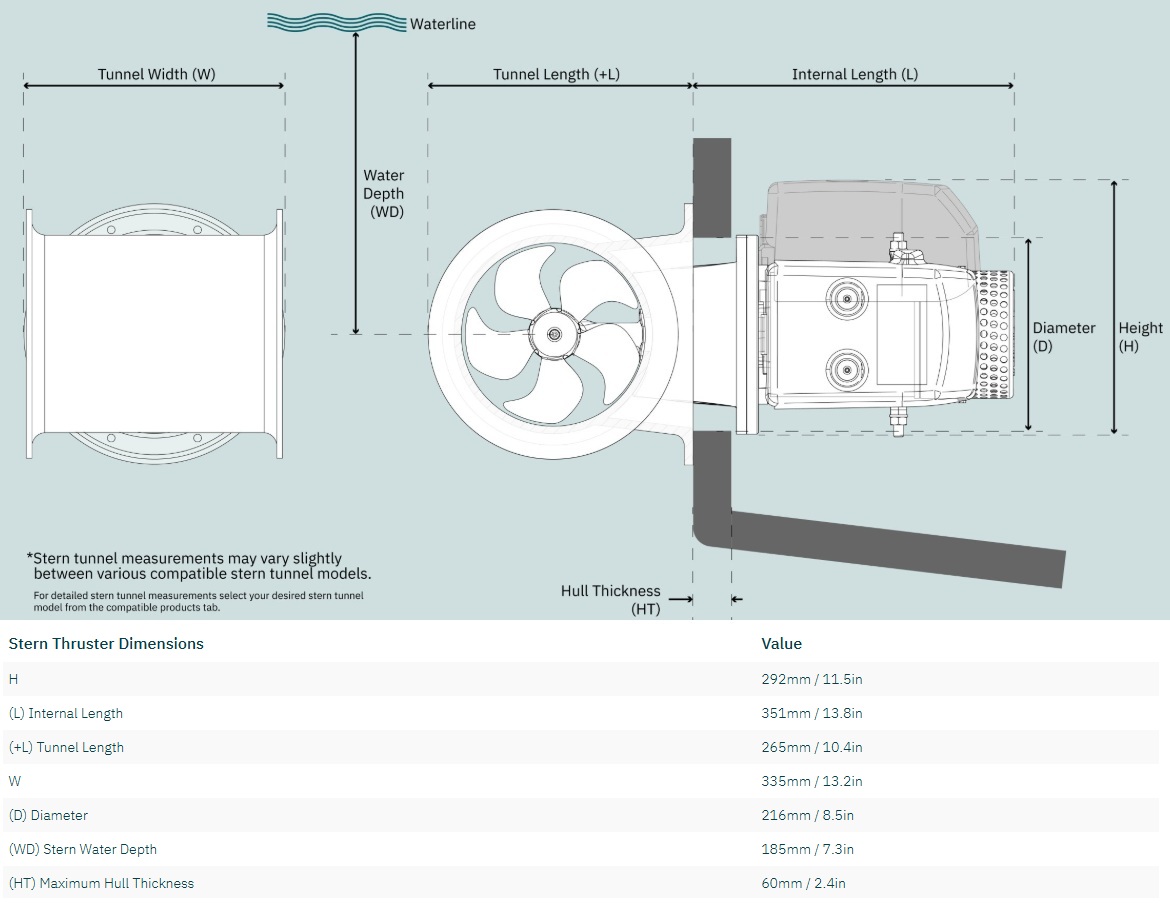

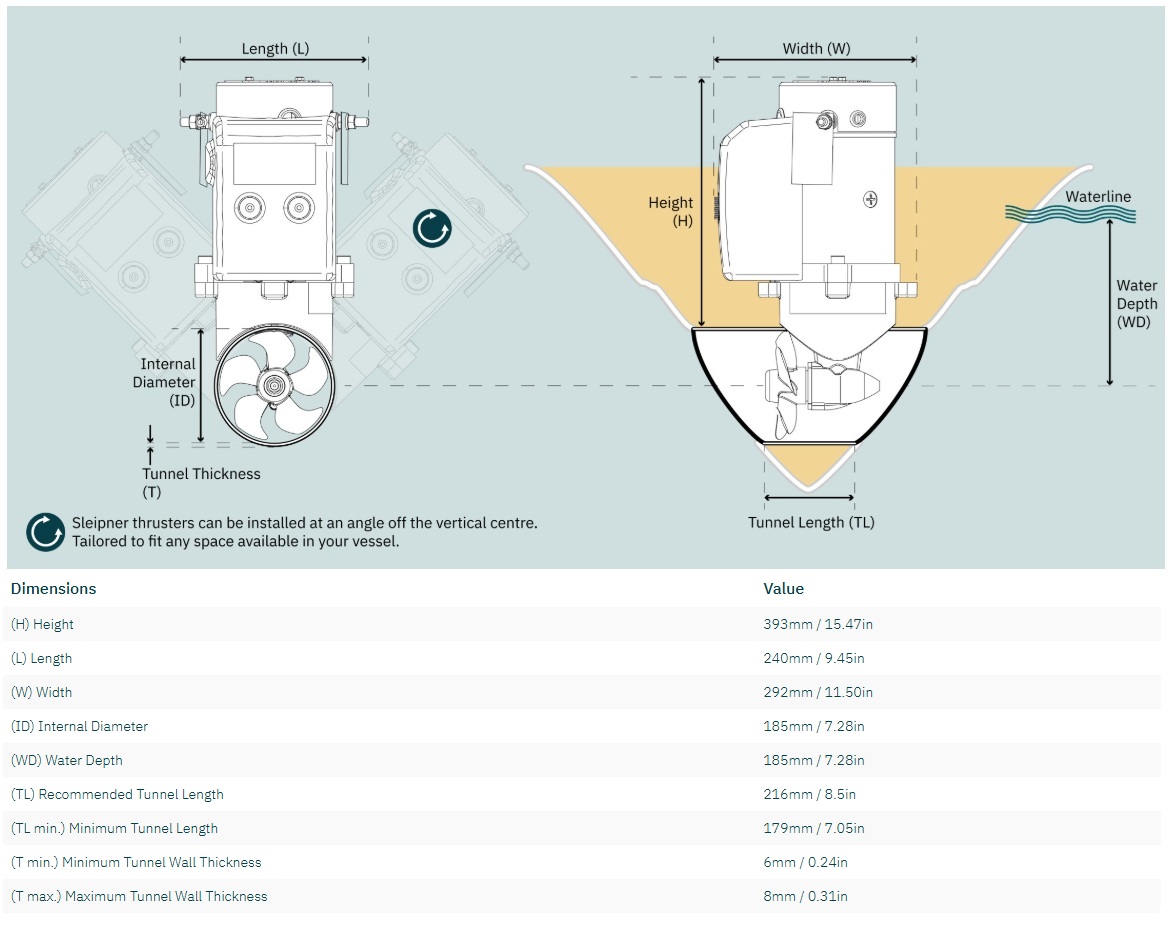

Thrust at 10.5V* (kg) 100
Thrust at 12V* (kg) 116 Typical boat size (ft • m) 35’ - 55’ • 12 - 17 Tunnel inner diameter (mm) 185 PropulsionTwin Power at 10.5V* (kW • Hp) 6,3 • 8,4 For DC system (V) 12 Weight (kg) 31 Min. battery capacity (CCA**) 750 Control systemAnalog |
| Scarica documento |
SIDE-POWER® by Sleipner Motor - Manuale SE80/185S-SE100/1855S-SE130/250. pdf (1.53 MB)
|
ESPLOSI |
| Scarica documento |
SIDE-POWER® by Sleipner Motor - Esploso, part list SE100/185S. pdf (1.53 MB)
|
ESPLOSI |
| Scarica documento |
SIDE-POWER® by Sleipner Motor - Manuale SE 80/100/130.pdf (1.53 MB)
|
MANUALI |
 |
 |

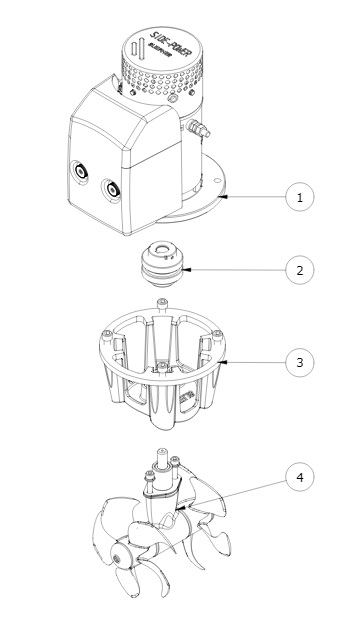

1# Electric motor Art.: 6 0101 12
2# Flexible coupling aRT.: 7 1462OBS
3# Bracket Item code: 8 0501
4# Gearleg Item code: 8 0601
|

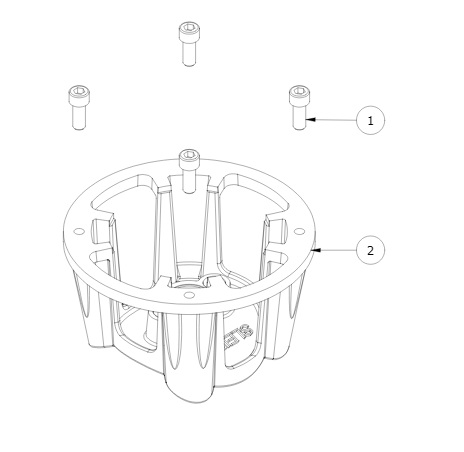

1 Bolt Quantity: 4 DIN 912 - M10 x 25 (A2)
2 Bracket for motor Quantity: 1
|

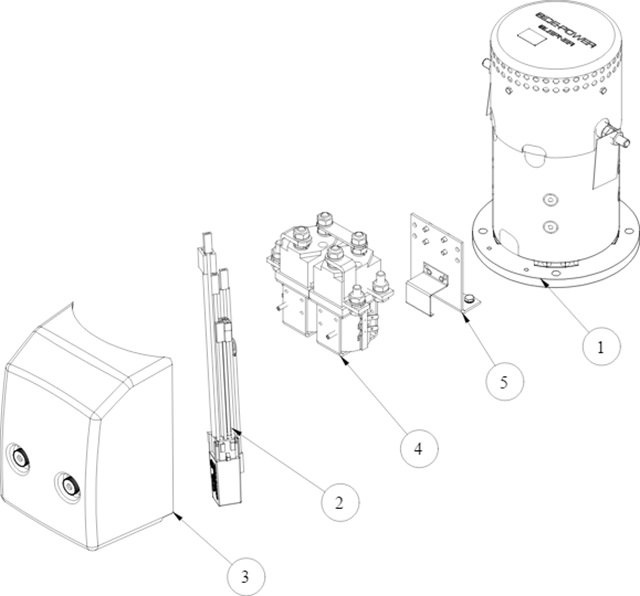

1# Electric motor
2# Controller Art.: SM159147
3# Solenoid cover kit for SE100 Art.: SM168568
4# Solenoid replacement Art.: 1013713 Add product
5# Solenoid bracket Kit Art.: 9 0136 12
6*# Brushes for motor (kit)
7*# Brushes spring for motor (kit)
8*# Temp switch
|
#1 Relè Ritardatore Delay relay Art: 6 1232 I
#2 Wireing Item code: 6 1226 B
|

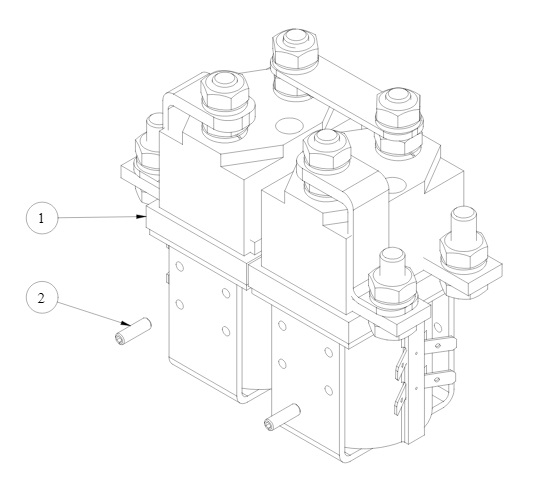

1# Solenoid 12V Art.: 10 1371
2# DIN 913 - M5 x 16 Q.ty: 2 Threaded pin
|

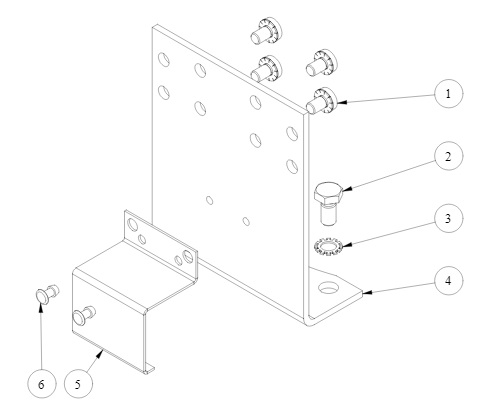

1# DIN7985 M5x8 + DIN6797 M5 Q.ty: 4
Philips pan head screw M5x8 A2 with washer
2# DIN 933 - M6 x 12 Q.ty: 2 Bolt
3# DIN 6798 - A 6,4 Q.y: 2 Serrated lock washer
4# Bracket for solenoid
|
|

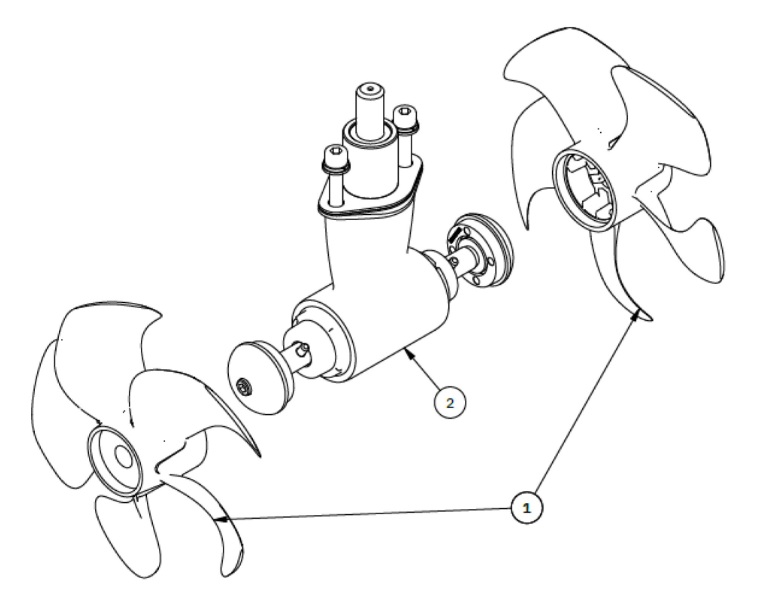

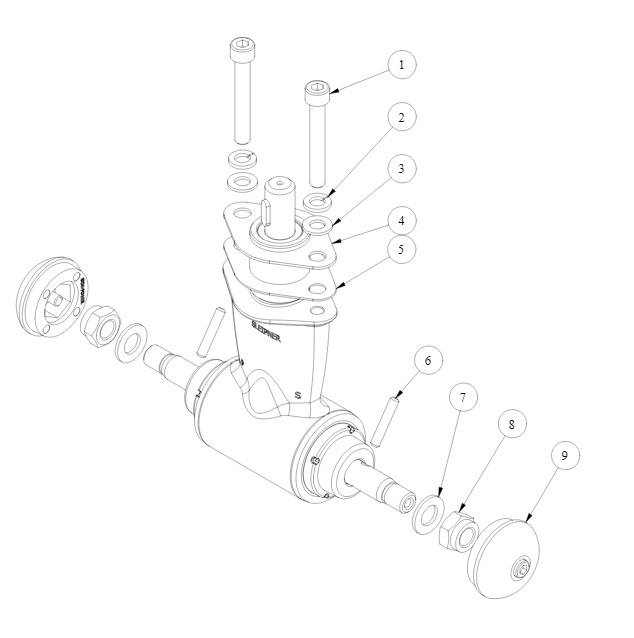

1 Propeller Item code: 7 1261 Quantity: 2
2 Complete gearleg w/out propeller Art.: 8 0601-U Q.tà: 1
|
1# DIN 912 - M8 x 55 Q.ty: 2Bolt
2# DIN 127 - A 8 Q.ty: 2 Spring lock washer
3# DIN 125 - A 8,4 Q.y: 2 Flat Washer
4/5# Gasket for gearleg installation in tunnel
Art.: 8 0610 Q.ty: 1
|

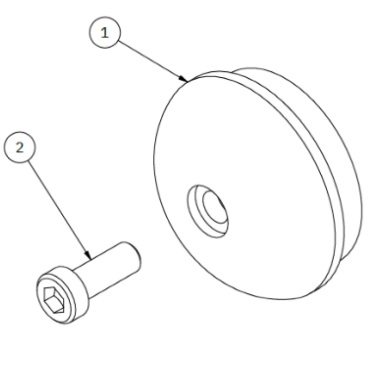

1# Anode, aluminium Art.: 7 9998 Q.ty: 1
2# Bolt - DIN 6912 - M6 x 16 Q.ty: 1
|

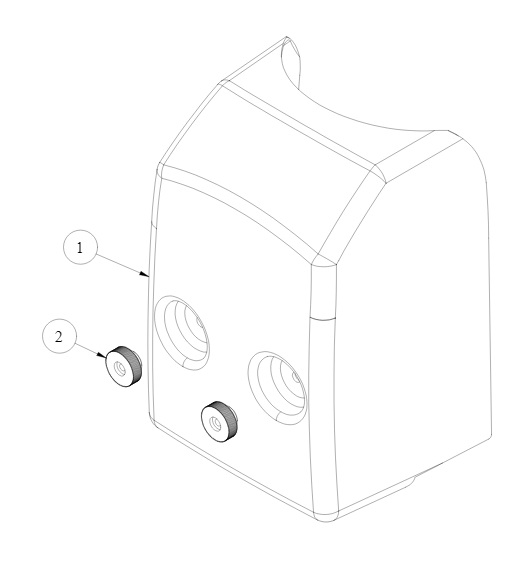

1# Solenoid cover Art.: 8 2025 Q.tà: 1
2# Plastic Nut Art: 6 8810 Q.ty: 2
|
|
|
