SIDE-POWER® by Sleipner Motor - SE50/140S Elica di manovra a Tunnel 12V
Codice: SIDE-POWER SE50/140S
SE50/140S Elica di manovra a Tunnel 12V 50kg.di spinta |
|
Item code: SE50/140S-12V EAN: 7070969019101
|
|
Thrust at 12V/24V* (kg • lbs) 62 • 136

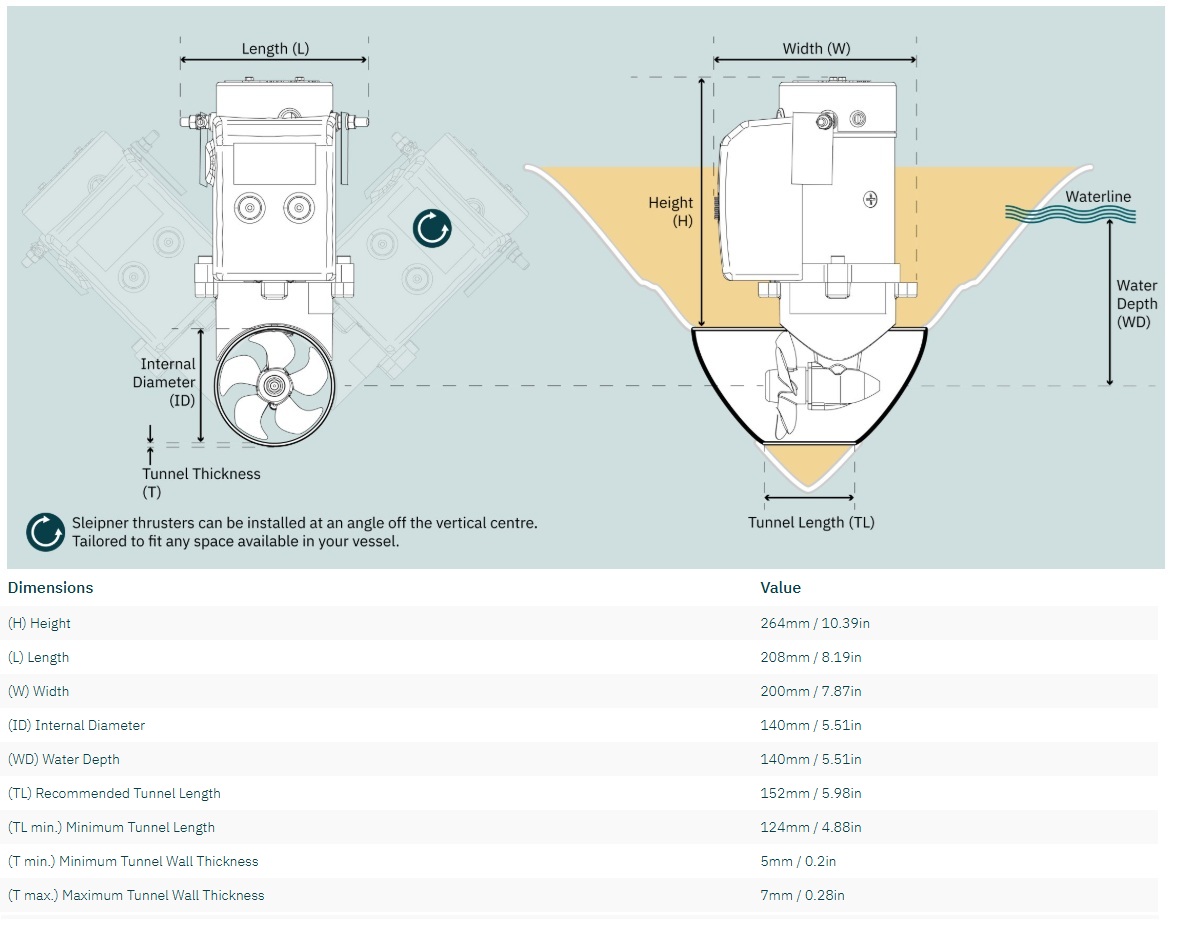

Thrust at 10.5V/12V* (kg • lbs) 50 • 110 Typical boat size (ft • m) 27' - 37' • 8 - 11 Tunnel inner diameter (mm • in) 140 • 5.5" PropulsionSingle Power at 10.5V/21V* (kW * hp) 2.4 • 3.2 For DC system (V) 12/24 Weight (kg • lbs) 15 • 33 Min. battery capacity (CCA** 12/24V) 350/175 |
| Scarica documento |
SIDE-POWER® by Sleipner Motor - Esploso, part list SE50/140S. pdf (622.02 KB)
|
ESPLOSI |
| Scarica documento |
SIDE-POWER® by Sleipner Motor - Manuale SE50/140S. pdf (1.92 MB)
|
MANUALI |

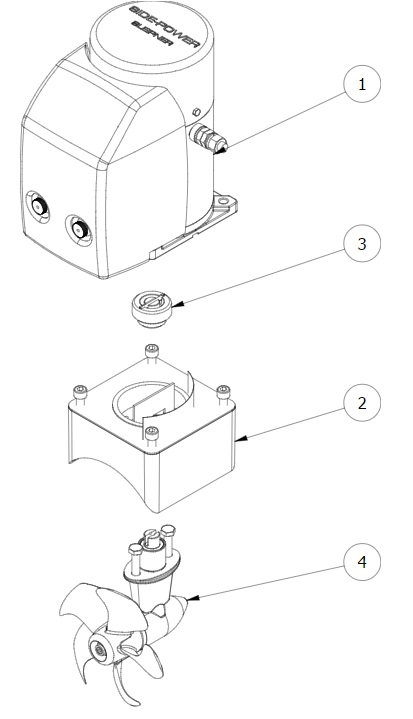

#1 - Motore elettrico Codice articolo: 5 0101 12
Electric motor Item code: 5 0101 12
#2 - Staffa Codice articolo: 3 0502
Bracket Item code: 3 0502
#3 - Giunto flessibile Codice articolo: SM-137073
Flexible coupling Item code: SM-137073
#4 - Gearleg Codice articolo: 5 0600
Gearleg Item code: 5 0600
|
||
#1 - Kit staffa solenoide Codice articolo: 4 0135
Solenoid bracket kit Item code: 4 0135
#2 - Solenoide 12V Codice articolo: 4 1472 123
Solenoid replacement 12V Item code: 4 1472 123
#3 - Perno filettato DIN 916 - M4 x 12 (A4)
Threaded pin bolt DIN 916 - M4 x 12 (A4)
#4 - Capicorda non isolato
Uninsulated cable lug
#5 - Centralina di controllo senza cavi 6 1232 I
Controller 6 1232 I
|
||
#1 - Spina guida 141285 - ISO 8734 - 4 x 32 - A
Drive pin 141285 - ISO 8734 - 4 x 32 - A
#2 - Giunto elastico SE50/60S2
Flexible coupling SE50/60S2
|
||
#1 - Elica Ø137mm art.: 5 1260
Propell Ø137mm Item code: 5 1260
#2 - Piede senza elica art.: 5 0600-U
Gearleg w/out propeller Item code: 5 0601-U
|
||

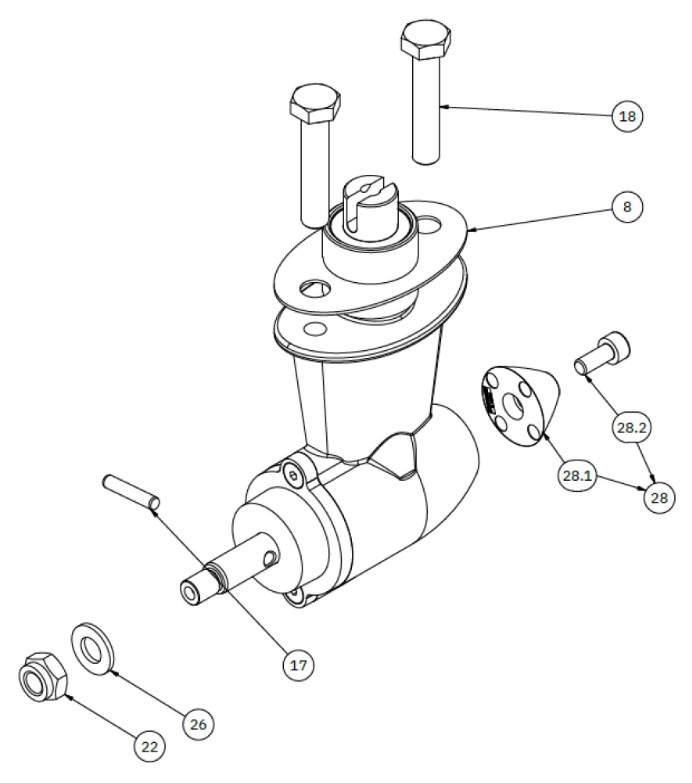

 #8 141261 - Guarnizione per gearleg SE50
#17 141258 - ISO 8734 - 4 x 20 - A
#18 141259 - DIN 931-1 - M8 x 40
#22 3 1250 - DIN 985 - M8x1,25
#26 208125 - DIN 125 - A 8,4
#28 Kit anodo, alluminio Codice articolo: 3 1180 A
#28.1 3 9998 - Anodo
#28.2 Bullone - 3 1172 - DIN 912 - M5 x 1
|
||

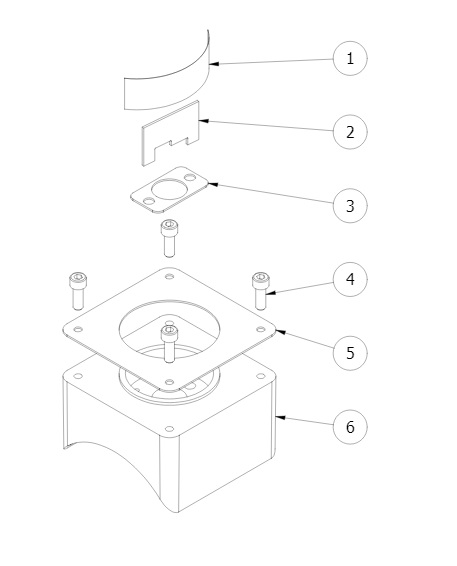

#1 Label for motor bracket Quantity: 1
#2 Measurement template Quantity: 1
#3 Support plate for motor bracket Quantity: 1
#4 DIN 912 - M8 x 22 Quantity: 4 Bolt
#5 Gasket for motor bracket Quantity: 1
#6 Motor bracket SE50 - machined Quantity: 1
|
||
