SIDE-POWER® by Sleipner Motor - SE80/185S-12V Elica di manovra a Tunnel
Codice: SIDE-POWER SE80/185S-12V
SE80/185S Elica di manovra a Tunnel 12V 80kg.di spinta |
|
Item code: SE80/185S-12V EAN: 7070969002097
|
|
Thrust at 10.5V* (kg) 80
Thrust at 12V* (kg) 96 Typical boat size (ft • m) 35’ - 48’ • 10 - 15 Tunnel inner diameter(mm) 185 PropulsionTwin Power at 10.5* (kW • Hp) 4,4 • 6 For DC system (V) 12 Weight (kg) 20 Min. battery capacity (CCA**) 550 Control systemAnalog |
| Scarica documento |
SIDE-POWER® by Sleipner Motor - Manuale SE80/185S-SE100/1855S-SE130/250. pdf (1.53 MB)
|
ESPLOSI |
| Scarica documento |
SIDE-POWER® by Sleipner Motor - Esploso, part list SE80/185S. pdf (2.26 MB)
|
ESPLOSI |
| Scarica documento |
SIDE-POWER® by Sleipner Motor - Manuale SE 80/100/130.pdf (1.53 MB)
|
MANUALI |
 |
 |
1# Electric motor Art.: 6 0101 12
2# Flexible coupling aRT.: 7 1462OBS
3# Bracket Item code: 8 0501
4# Gearleg Item code: 8 0601
|

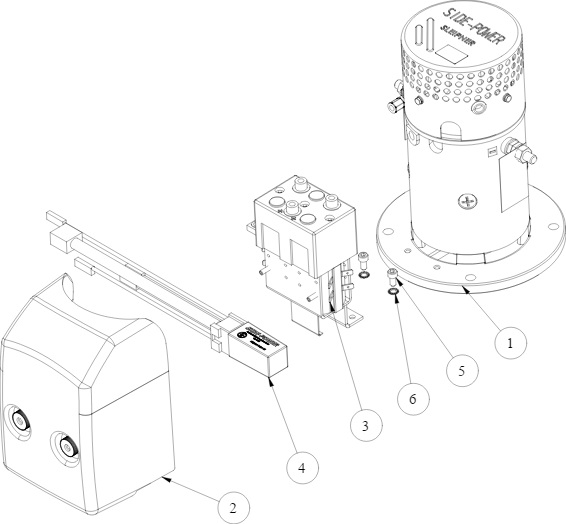

1# Electric motor 12V
2# Solenoid cover kit for SE80/100 Art.: SM168566
3# Solenoid replacement, 12V Art.: 41371123
4# Controller SE40-80/12-24V (SE80-130/24V) Art.: SM159144
5# Bolt Quantity: 2 DIN 912 - M6 x 12
6# Washer DIN 6798 - A 6,4
7*# Brushes for motor (kit)
8*# Brushes spring for motor (kit)
9*# Temp switch
|
1 Bolt Quantity: 4 DIN 912 - M10 x 25 (A2)
2 Bracket for motor Quantity: 1
|
 1 Propeller Item code: 7 1261 Quantity: 2
2 Complete gearleg w/out propeller Art.: 8 0601-U Q.tà: 1
|
1# Solenoid cover Art.: 6 2025 Q.tà: 1
2# Plastic Nut Art: 6 8810 Q.ty: 2
|
#1 Relè Ritardatore Delay relay Art: 6 1232 I
#2 Wireing Item code: 6 1226 B
|
1# DIN 912 - M8 x 55 Q.ty: 2Bolt
2# DIN 127 - A 8 Q.ty: 2 Spring lock washer
3# DIN 125 - A 8,4 Q.y: 2 Flat Washer
4/5# Gasket for gearleg installation in tunnel Art.: 8 0610 Q.ty: 1
|
 1# Anode, aluminium Art.: 7 9998 Q.ty: 1
2# Bolt - DIN 6912 - M6 x 16 Q.ty: 1
|
|
|
